Mastering Clipping Masks for Vector Realism

Adobe Illustrator is renowned for producing crisp, stylized, scalable graphics, but its capacity for photorealism is vastly underutilized. The secret bridge between flat vectors and dimensional, realistic rendering is the Clipping Mask—most efficiently utilized through the "Draw Inside" function.

A clipping mask is a vector shape that serves as a rigid perimeter for the artwork layered inside of it. The internal sub-layers can be messy and extend far beyond the master boundary, but only the pixels intersecting with that master shape will be visible.

Why is this essential for high-level illustration? Here are the three strategic advantages:

1. It eliminates hairline gaps. When building complex forms, trying to perfectly align the edge of a shadow shape with the edge of a base shape is a waste of time and often results in microscopic, transparent gaps. Clipping masks allow you to work quickly and cleanly by overlapping your strokes without worrying about the outside edge.

2. It unlocks atmospheric control. Does everything in nature have a hard edge? No. Consider the lighting on a baseball: where the light turns into shadow, there is a soft, gradual transition. However, where the baseball meets the background, the edge is razor-sharp. Clipping masks allow you to apply heavy blurs to your internal shadow and highlight shapes, letting those blurs run naturally off the edge while the master mask maintains a perfectly sharp outer silhouette.

3. It enables non-destructive realism. You can push the limits of vector art into photorealism by stacking gradients, blurs, and blend modes inside a single mask, all while keeping the fundamental architecture editable.

Let’s look at this workflow in action.

The Studio Toolbox

Illustrator Tools

Before we begin, ensure you are familiar with these core tools:

Draw Inside (Shift + D): A drawing mode that instantly creates a Clipping Group out of your selected shape.
Transparency Panel: Used to assign Blend Modes (Multiply, Screen, Overlay) to your internal shapes to mimic how light interacts with surface color.
Appearance Panel: The control center for editing live effects like Gaussian Blurs after they’ve been applied.

The Studio Toolbox

Illustrator Tools

Before we begin, ensure you are familiar with these core tools:

Draw Inside (Shift + D): A drawing mode that instantly creates a Clipping Group out of your selected shape.
Transparency Panel: Used to assign Blend Modes (Multiply, Screen, Overlay) to your internal shapes to mimic how light interacts with surface color.
Appearance Panel: The control center for editing live effects like Gaussian Blurs after they’ve been applied.

Step 1:

The Master Silhouette

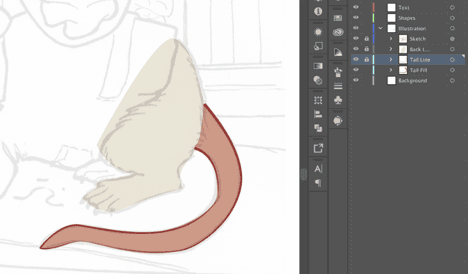

For this example, we are going to realistically render a mouse tail, adding dimensional shadows and reflected light without breaking the precise silhouette.

Draw the foundational shape of your object. Crucial detail: the object must have a Fill applied to it for the next step to work.
Select the shape with the Black Arrow (V).

Step 1:

The Master Silhouette

For this example, we are going to realistically render a mouse tail, adding dimensional shadows and reflected light without breaking the precise silhouette.

Draw the foundational shape of your object. Crucial detail: the object must have a Fill applied to it for the next step to work.
Select the shape with the Black Arrow (V).

Step 1:

The Master Silhouette

For this example, we are going to realistically render a mouse tail, adding dimensional shadows and reflected light without breaking the precise silhouette.

Draw the foundational shape of your object. Crucial detail: the object must have a Fill applied to it for the next step to work.
Select the shape with the Black Arrow (V).

Step 2:

Activating the Mask

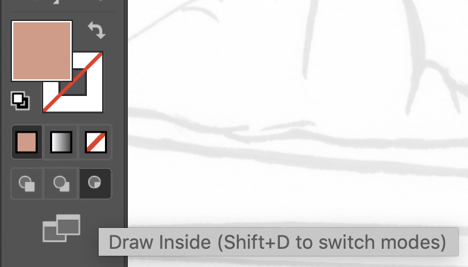

With the shape selected, look at the very bottom of your left-hand Toolbar and click the Draw Inside icon (or press Shift + D until it activates).

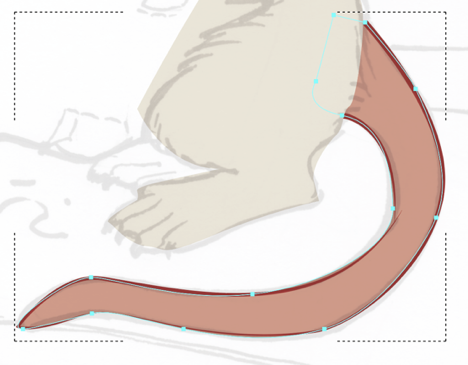

A dashed boundary box will appear around the object. This confirms that "Draw Inside" is active and your master clipping mask is established.

Step 2:

Activating the Mask

With the shape selected, look at the very bottom of your left-hand Toolbar and click the Draw Inside icon (or press Shift + D until it activates).
A dashed boundary box will appear around the object. This confirms that "Draw Inside" is active and your master clipping mask is established.

Step 3:

Sculpting the Light & Shadow

Now you can paint freely without fear of ruining your edges.

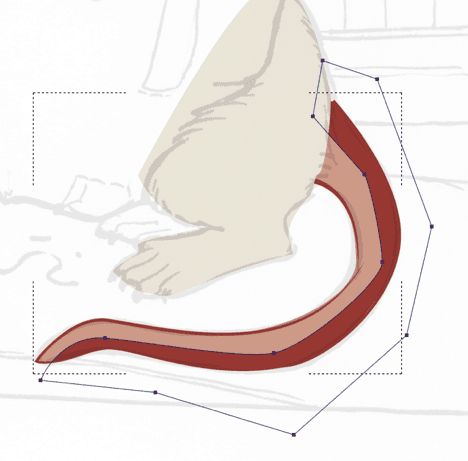

Use the Pen Tool or Blob Brush to draw a shadow shape along the bottom edge of the tail.
The Strategy: Make the shape much larger than the tail itself, allowing it to bleed completely out into the negative space. As you can see, the shape is automatically "clipped" and only visible within the tail.

Step 3:

Sculpting the Light & Shadow

Now you can paint freely without fear of ruining your edges.

Use the Pen Tool or Blob Brush to draw a shadow shape along the bottom edge of the tail.
The Strategy: Make the shape much larger than the tail itself, allowing it to bleed completely out into the negative space. As you can see, the shape is automatically "clipped" and only visible within the tail.

Step 4:

Softening the Form

This is where the realism happens. Flat vectors become dimensional when we control the edge transitions.

Select your internal shadow shape.
Go to Effect > Blur > Gaussian Blur and soften the shadow to create a natural core terminator line.
Open your Transparency Panel and change the Blend Mode to Multiply.

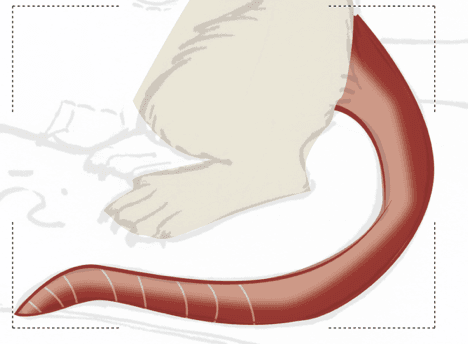

Repeat this process for highlights (using the Screen blend mode) or reflected ambient light. You can continue adding as many overlapping, blurred shapes as you need, as long as that dashed frame is active.

Step 4:

Softening the Form

This is where the realism happens. Flat vectors become dimensional when we control the edge transitions.

Select your internal shadow shape.
Go to Effect > Blur > Gaussian Blur and soften the shadow to create a natural core terminator line.
Open your Transparency Panel and change the Blend Mode to Multiply.
Repeat this process for highlights (using the Screen blend mode) or reflected ambient light. You can continue adding as many overlapping, blurred shapes as you need, as long as that dashed frame is active.

Step 5:

Exiting & Iterating

When you are finished rendering, double-click anywhere in the empty canvas space, or click the Draw Normalicon at the bottom of the Toolbar to exit the mask.

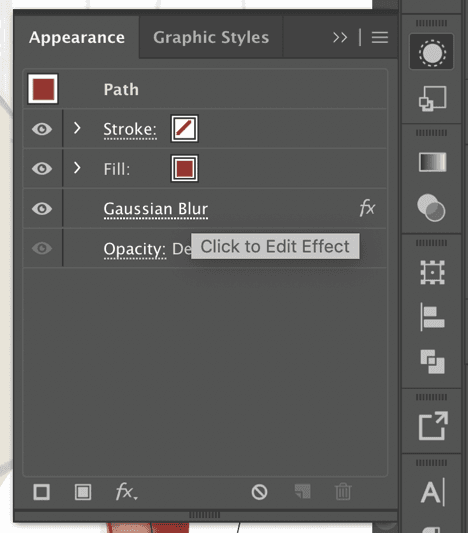

Editing: You haven't permanently flattened anything. If you open your Layers panel, you will see a newly created "Clip Group." You can open this group at any time to select your internal shadow, change its color, or open your Appearance Panel to adjust the radius of the Gaussian Blur.

Step 5:

Exiting & Iterating

When you are finished rendering, double-click anywhere in the empty canvas space, or click the Draw Normalicon at the bottom of the Toolbar to exit the mask.
Editing: You haven't permanently flattened anything. If you open your Layers panel, you will see a newly created "Clip Group." You can open this group at any time to select your internal shadow, change its color, or open your Appearance Panel to adjust the radius of the Gaussian Blur.

Key Takeaways

"Draw Inside" for Realism

Use "Draw Inside" to establish a rigid master boundary, allowing you to freely layer blurred shapes, gradients, and blend modes to achieve photorealism without sacrificing vector precision.

Key Takeaways

"Draw Inside" for Realism

Use "Draw Inside" to establish a rigid master boundary, allowing you to freely layer blurred shapes, gradients, and blend modes to achieve photorealism without sacrificing vector precision.
